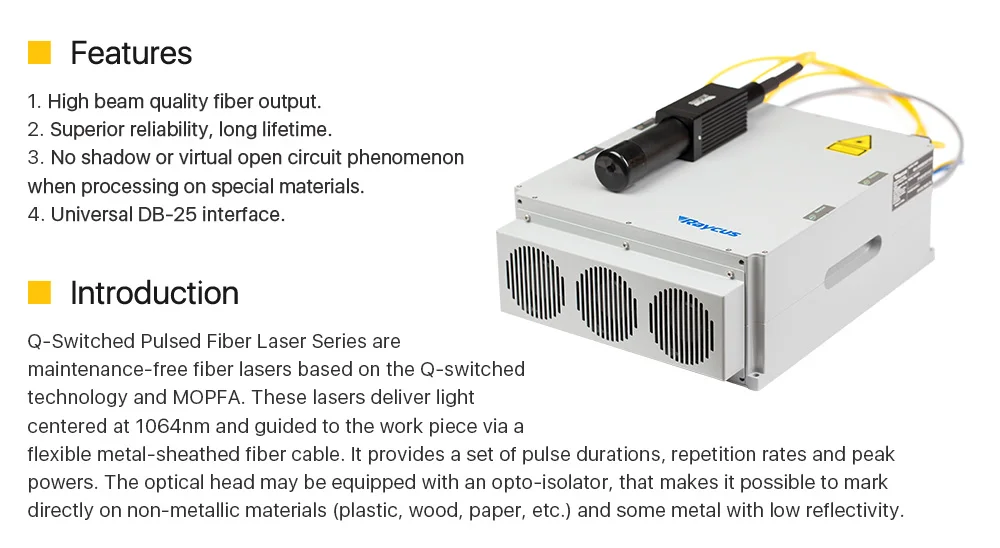

Raycus 20W-50W Q-switched Pulse Fiber Laser Series GQM 1064nm High Quality Laser Marking Machine DIY PART

$13,500.00
rating
  • Ex Tax:$13,500.00
  • Brand: raymond
  • Product Code:Raycus 20W-50W Q-switched Pulse Fiber Laser Series GQM 1064nm Hi
  • Availability:In Stock

Pulsed fiber laser 20W 30W 50W Wavelength(nm) 1064 1064 1064 Polarization Random Random Random Optical isolator Yes Yes ..

Pulsed fiber laser

20W

30W

50W

Wavelength(nm)

1064

1064

1064

Polarization

Random

Random

Random

Optical isolator

Yes

Yes

Yes

Nominal average output power (W)

≥20

≥30

≥50

Single pulse energy (mJ) @20kHz

1@30kHz

1@30kHz

1@30kHz

Beam quality(M2)

<1.8

<1.8

<1.8

Beam Diameter(mm)

6~8

6~8

6~8

Pulse duration(ns)@20kHz

<120@30kHz

<120@30khz

<120@30khz

Pulse repetition rate(kHz)

20-60

30-60

50-100

Output Power Tunability(%)

10-100

10-100

10-100

Output Fiber Cable length(m)

2

2

2

Working voltage(VDC)

24±1

24±1

24±1

Power consumption(20°)(W)

200

300

400

Cooling

Forced Air Cooled

Forced Air Cooled

Forced Air Cooled

Dimension W×D×H(mm)

260×391×120

396×360×125

Operating temperature

0°~40°

Store temperature

-10°~60°

Humidity

30%~85%


A300 Line CIJ Model
Model Number RFL-P20Q/RFL-P30Q/RFL-P50Q
Aliexpress
Brand Name Cloudray
Mode Pulse
Polarization Random
Center Wavelength 1064nm
Power Range 10-100%
Output Power 3%
Beam Ellipticity 90%
Laser Startup Time 110-140um
Laser Shutdown 110-150um
